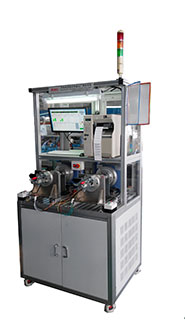

Rear Wiper Motor Test System
|
Customers: VALEO, SHB, WELL-TECH
|
|
|
Features:
1. Automatically do quick Pass/Fail Test: multi points loading test in 0~20sec: no load, load 1(torque M1), load 2(torque M2),load 3(torque M3).
2. Automatically test the max swing,angle and revolution, antomatically judge the direction and parking positon.
3. Automatically alarm out of the limit: preset the upper limit of current and upper-lower limit of rev, system can automatically distinguish and alarm the unacceptable value.
4. Quick fixing: pneumatic or mechanical fixture to improve testing speed.
5. Testing step: 2~3 sets/ min.
6. Insulation-resisted and high voltage-resisted safety testing for the motor, alarm on the fail. (Optional)
7. Motor database: selected by serial number, model, date, etc. Automatically review testing data and curve.
|
|
|
